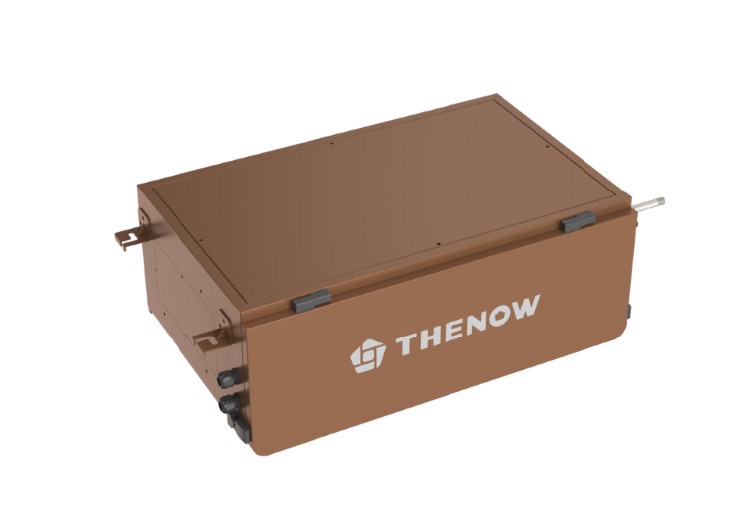

VHSN-J15 Inverter Split System – Technical Specifications
| Model |
Unit |
VHSN-J15 |
| Cellar Size |
m³ |
5–15 |
| Horse Power |
Hp |
0.5 |
| Power Supply |
V/Hz |
220/50 |
| Cooling Capacity A |
kW |
0.8 |
| Cooling Capacity B |
kW |
1.9 |
| Heating Capacity |
kW |
2.3 |
| Air Flow |
m³/h |
300 |
| Static Pressure |
Pa |
30 |
| Noise |
dB(A) |
38 |
| Refrigerant |
/ |
R32 |
| Controller |
/ |
PC Full-touch smart control |
| Temperature |
℃ |
10–18℃, ±2℃ |
| Humidity |
%RH |
50–70%, ±5% |
| Total Power |
kW |
0.73 |
| Humidifier |
Type |
Wet-film |
| Indoor Unit Size |
L × W × H (mm) |
881 × 473 × 314 |
| Outdoor Unit Size |
L × W × H (mm) |
758 × 336 × 500 |
| Tube Connection |
Liquid (mm) |
6.35 |
|
Gas (mm) |
9.52 |
Cooling Capacity A: Tested at 12℃ cellar temperature, 60% RH and 35℃ outdoor temperature.
Cooling Capacity B: Tested at 27℃ cellar temperature, 60% RH and 35℃ outdoor temperature.
