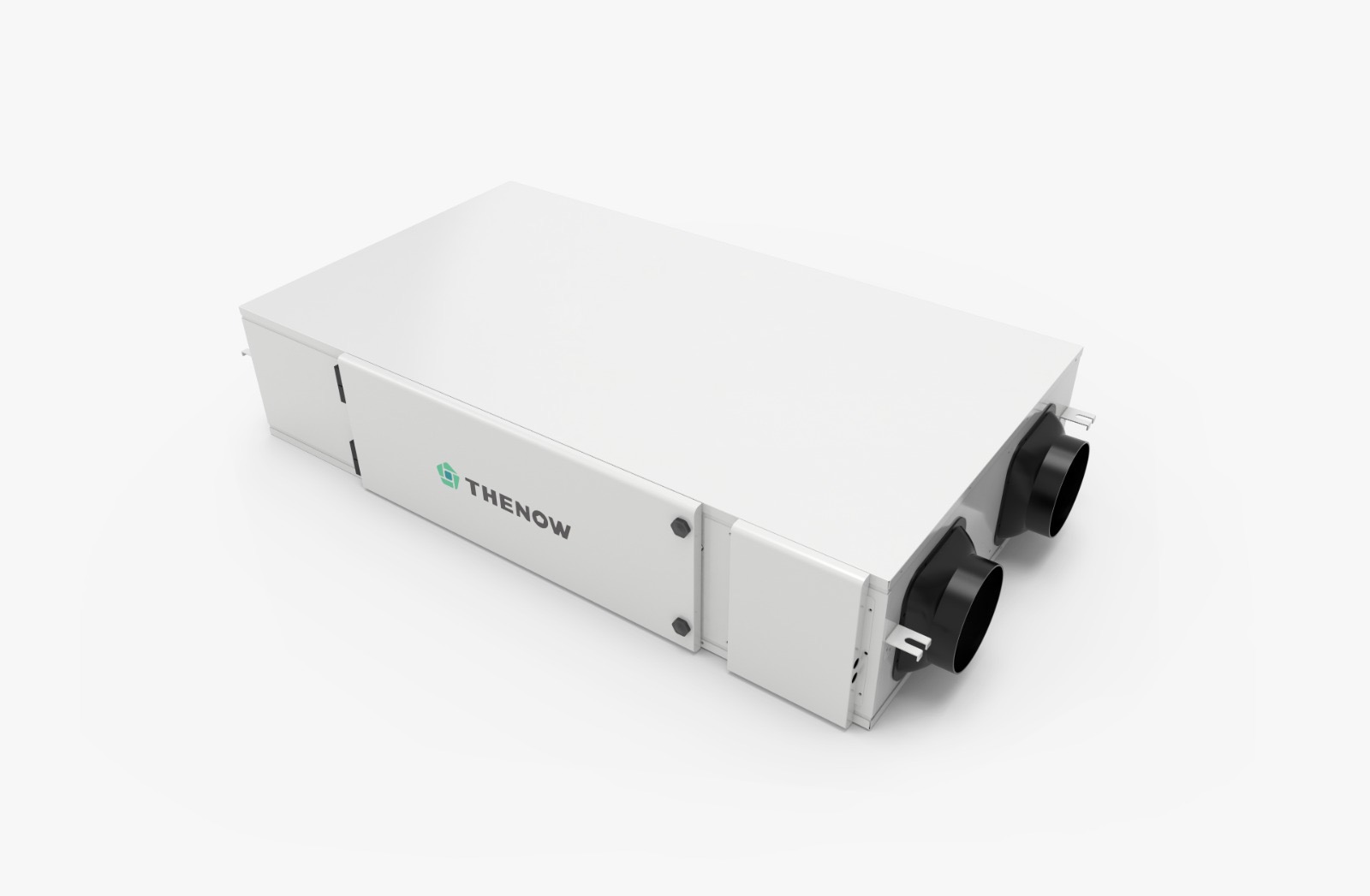

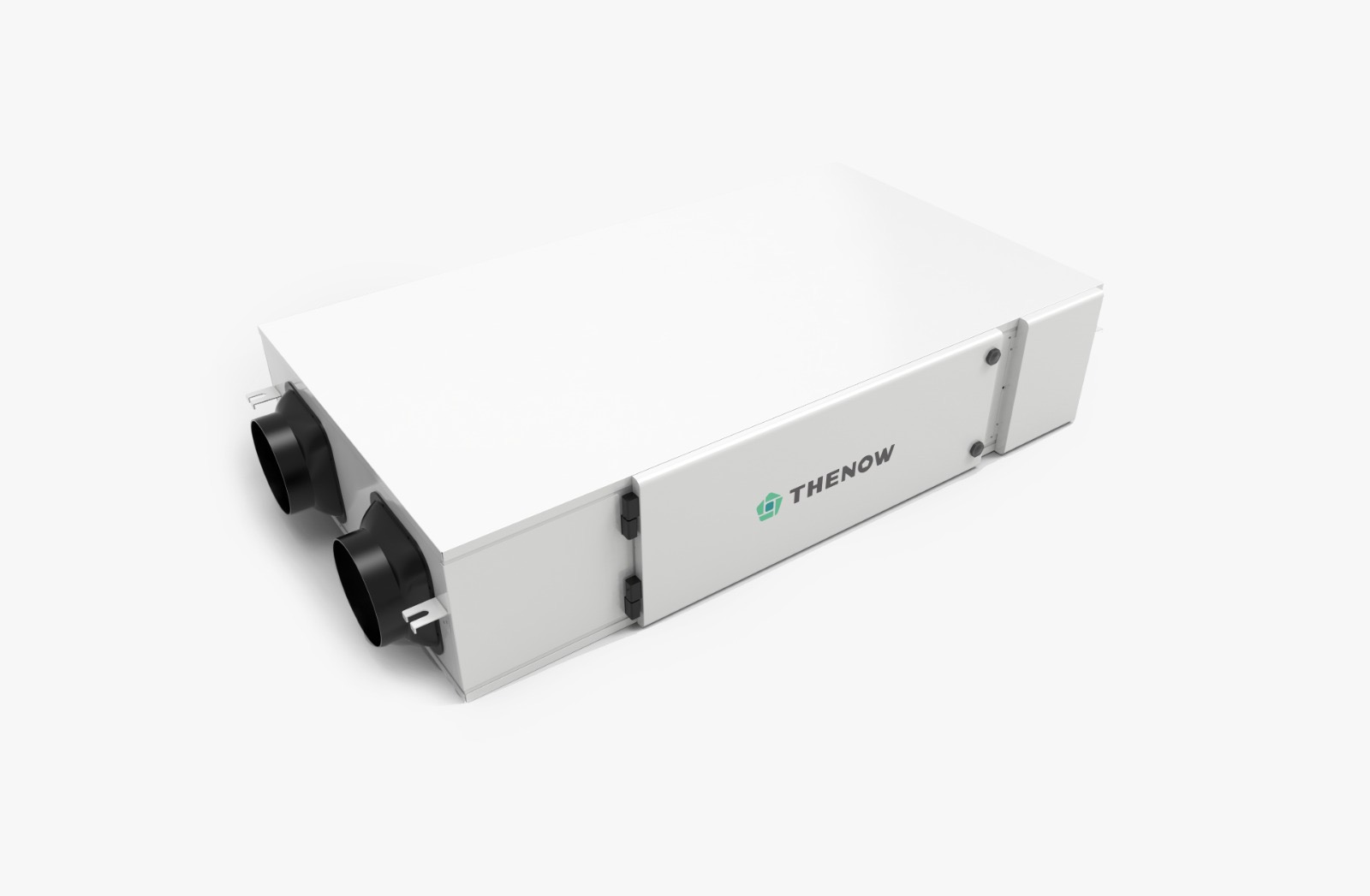

• Stellar Electrostatic Filtration ERV Series

Features of Residential Ceiling ERV with Electrostatic Filtration – Stellar Series

  • Patented PureESP electrostatic sterilisation technology removes 99.5% of pathogens with zero ozone production

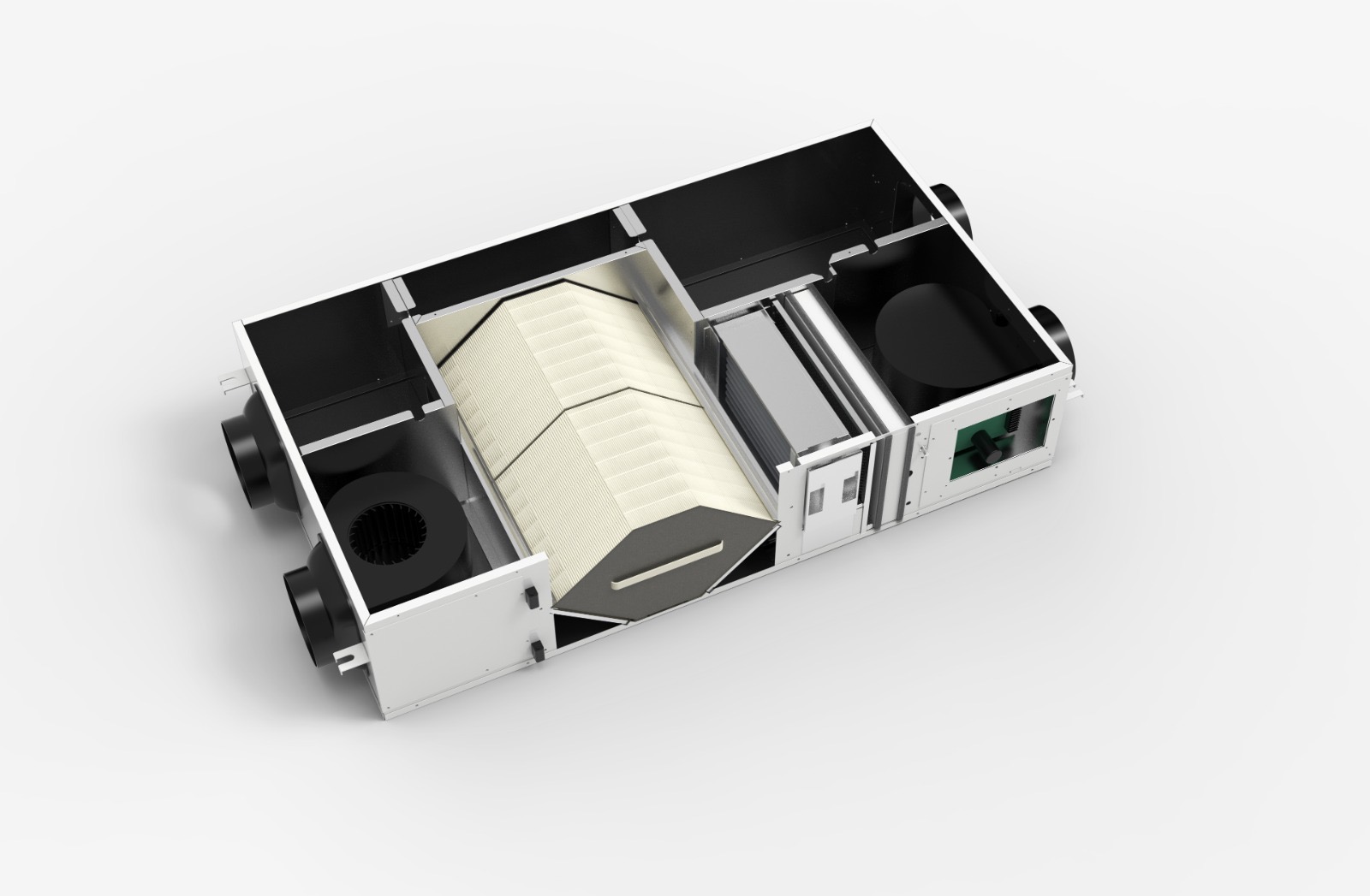

  • Four-stage filtration: pre-filter, electrostatic sterilisation, catalytic filter, and HEPA filtration
  • Graphene total heat exchanger provides high enthalpy efficiency (up to 89% heating / 76% cooling)
  • High-efficiency DC brushless motor ensures ultra-quiet performance down to 36 dB(A)
  • Pressurised air-duct design for high air volume and low noise
  • Smart touch-screen interface for user convenience
  • Removable, washable heat-exchange core for easy maintenance
  • Efficient PM0.001 particle and VOC removal for a clean, healthy indoor environment
  • Optional CO₂, VOC, PM2.5, and humidity sensors available
  • Suitable for high-end residential, commercial, hospitality, and educational environments

Application of Home Fresh Air Ventilation System – Stellar Series

Residential buildings, hospitals, offices, shops, kindergartens, schools, hotels, and villas.

Technical Data of Residential Fresh Air Exchanger with Electrostatic Filtration – Stellar Series

Model Power Supply Rated Power (W) Air Flow (m³/h) Enthalpy Efficiency (%) Outlet Total Pressure (Pa) Noise dB(A) Weight (kg) Size (LxWxT mm)
TSX250-AF21 220V 50Hz 107 / 56 / 36 250 / 175 / 125 82 / 85 / 89 (Heating) – 66 / 71 / 76 (Cooling) 110 / 100 / 90 42 / 37 / 35 48 1328 × 685 × 255
TSX350-AF21 220V 50Hz 160 / 91 / 55 350 / 250 / 175 79 / 82 / 86 (Heating) – 59 / 65 / 69 (Cooling) 115 / 105 / 95 37 / 32 / 28 48 1322 × 685 × 256
TSX500-AF21 220V 50Hz 242 / 115 / 64 500 / 350 / 250 68 / 70 / 73 (Heating) – 55 / 59 / 63 (Cooling) 115 / 105 / 95 43 / 35 / 30 70 1380 × 993 × 264

*All data derived from accredited testing agencies. Specifications may vary based on final product configuration.

Please enquire below for pricing
