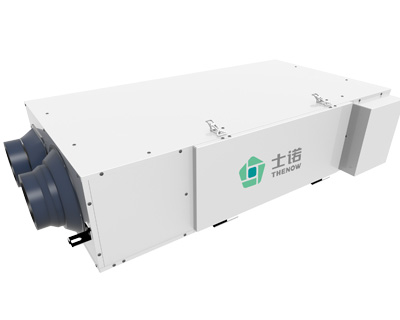

• Residential Ceiling ERV/HRV With HEPA System-AG Series

Features of Residential Energy Recovery Ventilator With HEPA System-AG Series

  • Innovative high efficiency counter flow full heat exchanger
  • Two types available: G3 filter + HEPA filter and G3 filter + F7 filter + HEPA filter
  • 218mm Ultra-thin design, save your space
  • High efficiency DC motor, low noise
  • Bypass is optional
  • Pre heating is optional
  • CO2 , VOC, PM2.5 and humidity sensors are optional
  • Sensible heat recovery unit is optional

Application of Residential Air Exchanger System With HEPA System-AG Series:

Residential building, Hospital, Offices and shops, Kindergarten, Schools, Hotels, Villa etc.

Technical Data of Residential Ventilation Systems With HEPA System-AG Series

Model Voltage Rated Power (W) Air Flow (m³/h) Enthalpy Efficiency (%) Outlet Total Pressure (Pa) Noise dB(A) Weight (kg) Size (LxWxT mm)
H
TSX150-AG01 220V 50Hz 1PH 95 150 66 80 37 22 936x640x205
TSX250-AG02 220V 50Hz 1PH 110 250 64 95 40 23 955x640x220
TSX350-AG01 220V 50Hz 1PH 176 350 63 100 43 26 960x702x260
TSX250-AG01 220V 50Hz 1PH 78 250 74 100 38 31 1175x686x218
TSX300-AG01 220V 50Hz 1PH 98 300 72 110 41 34 1245x815x218
TSX500-AG01 220V 50Hz 1PH 180 500 72 140 N/A N/A N/A
